Description

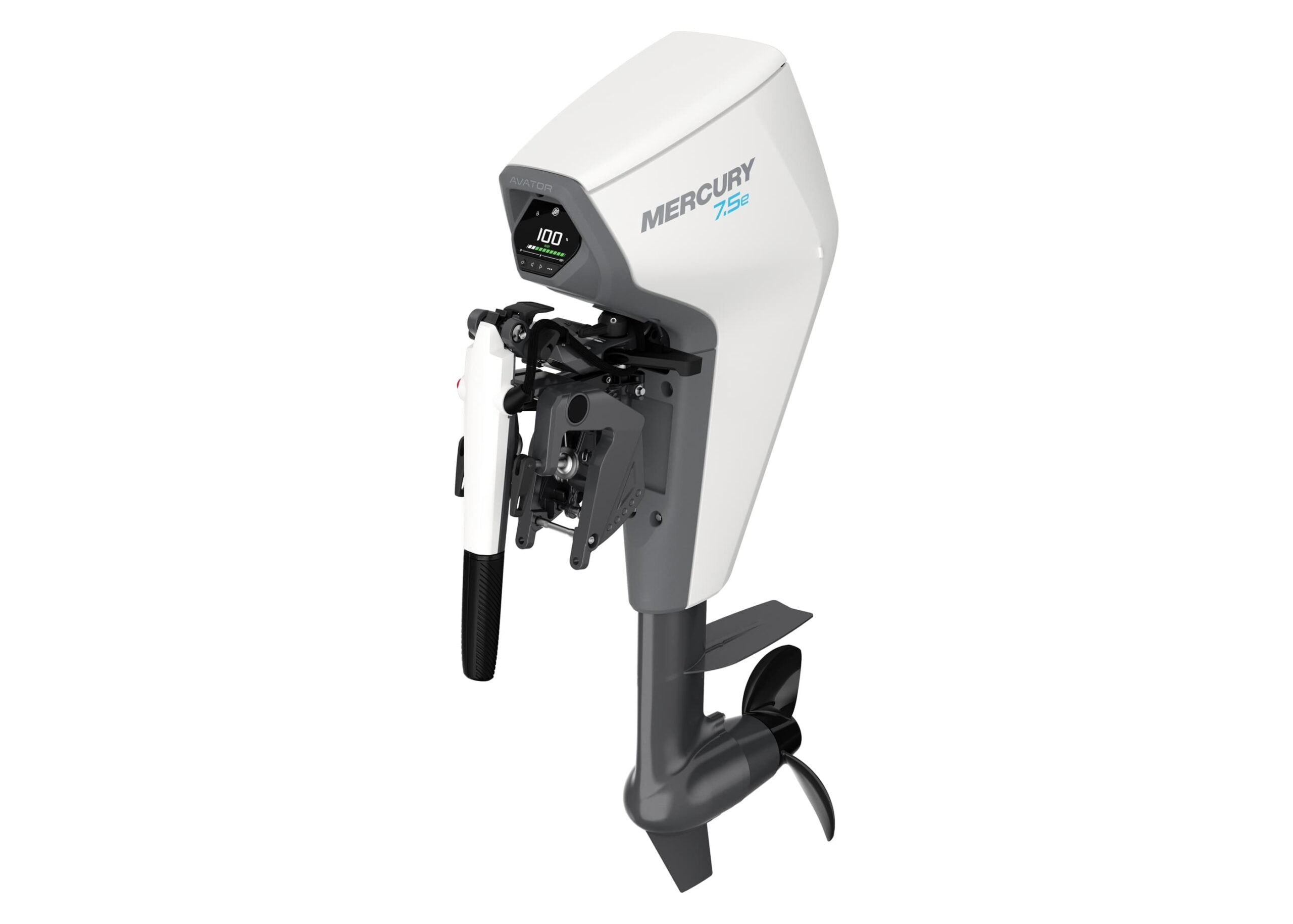

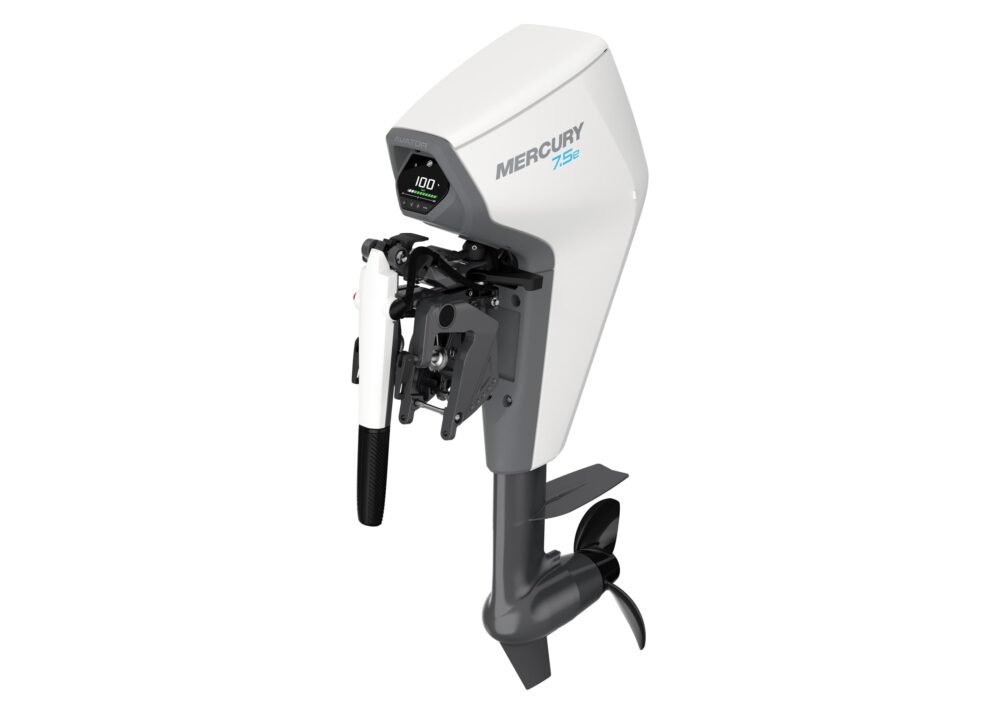

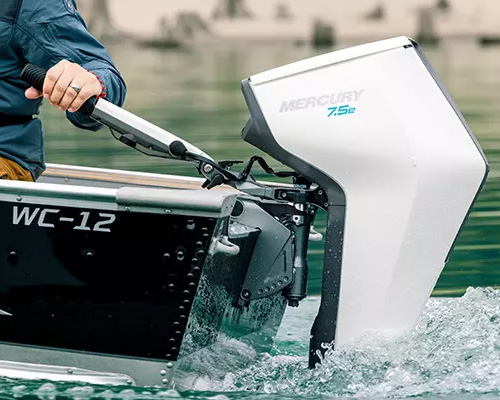

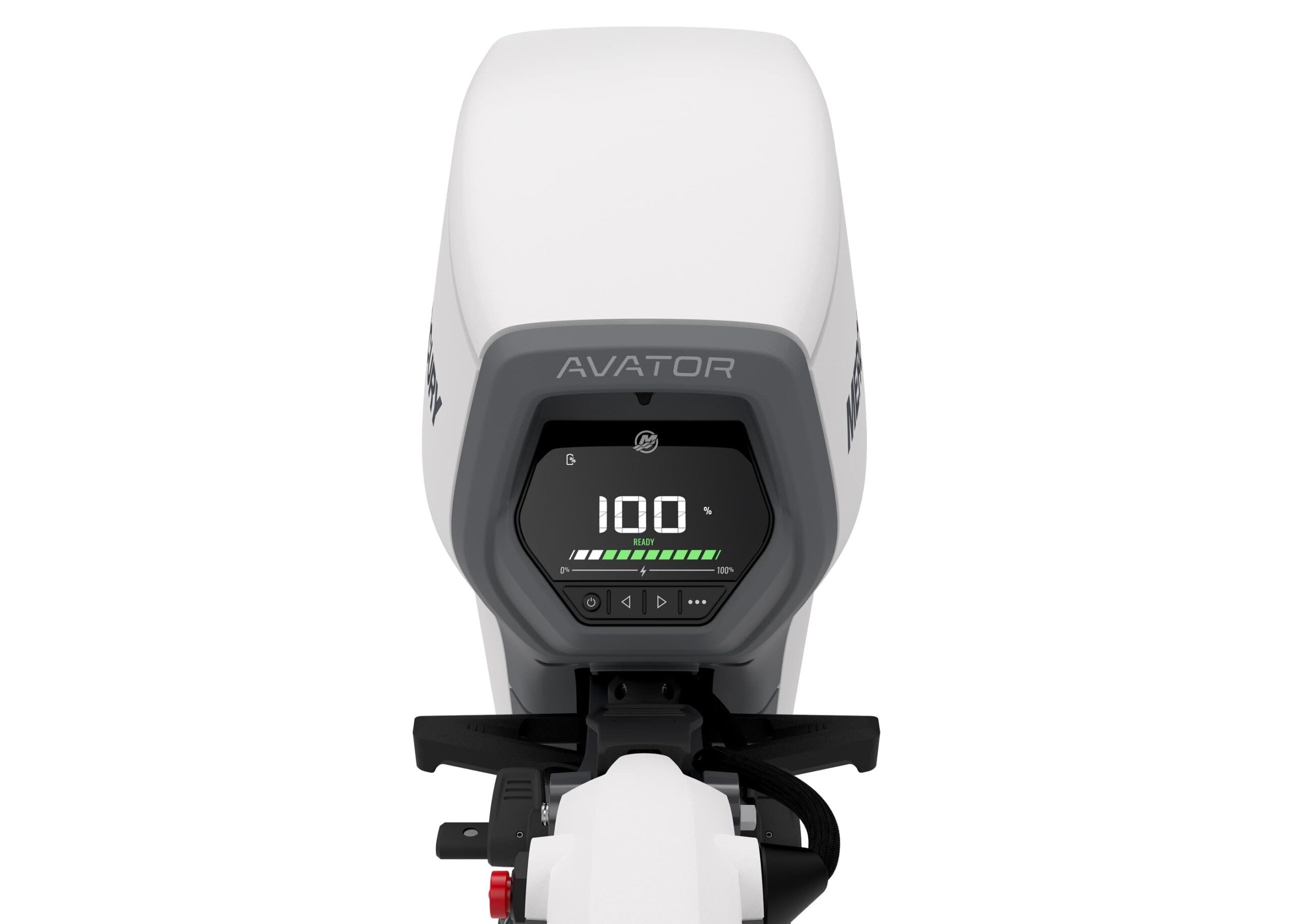

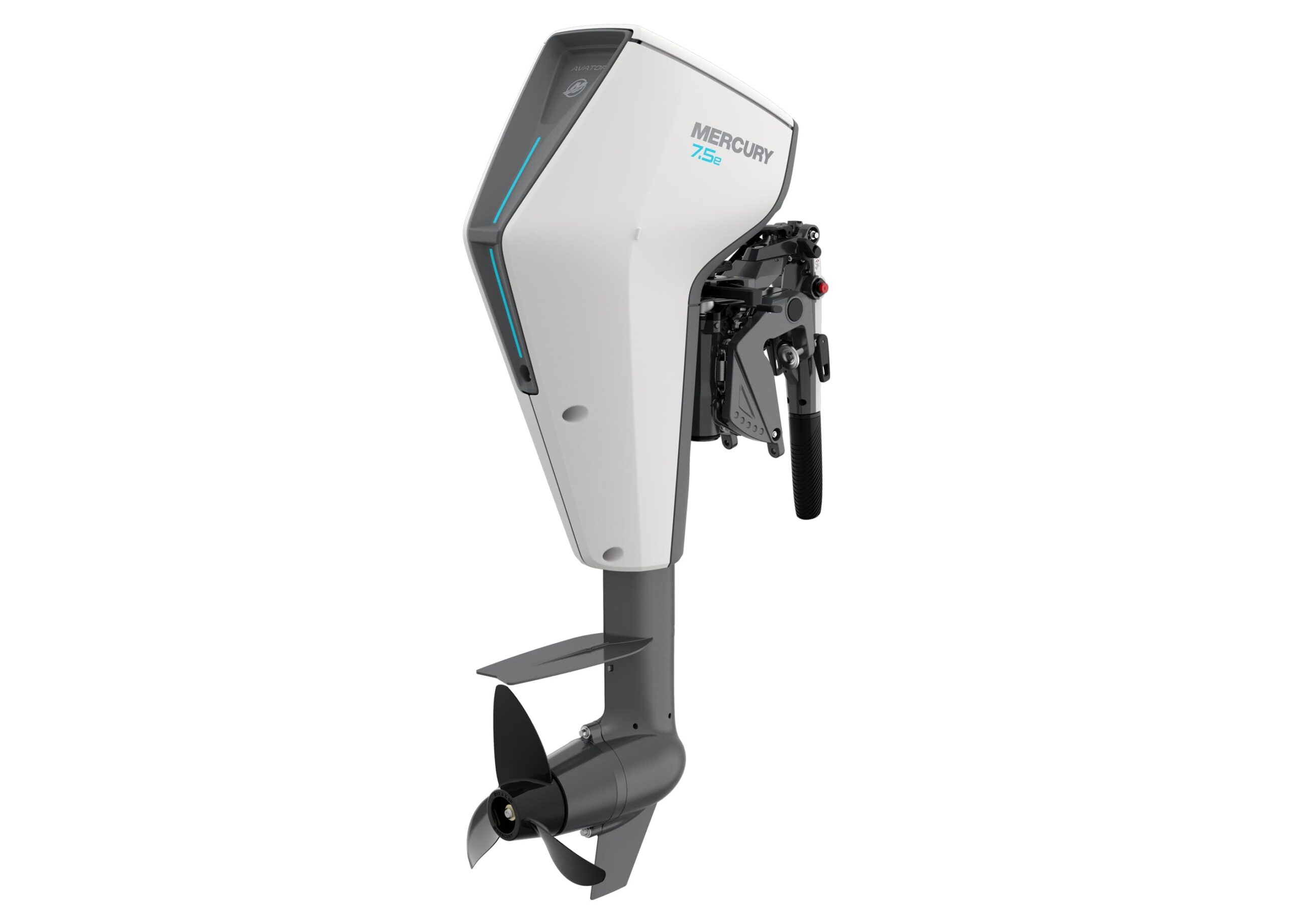

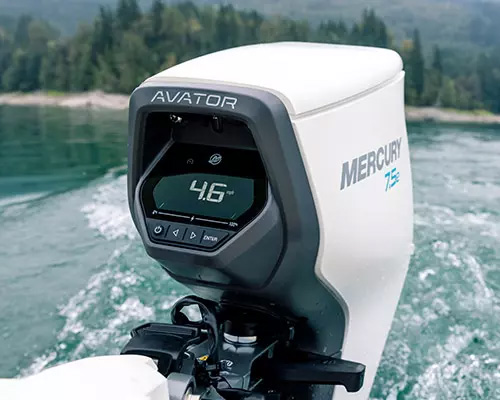

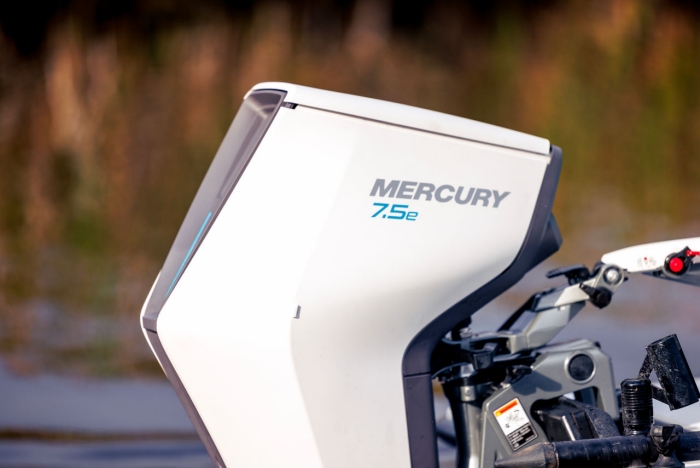

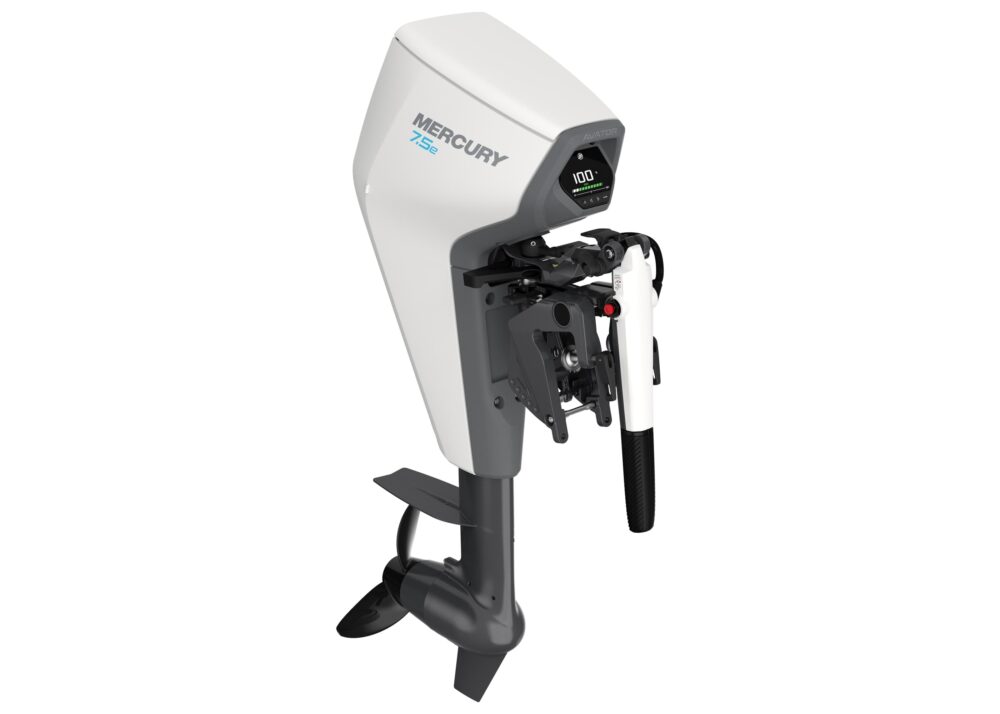

The Mercury® Avator™ 7.5e electric outboard delivers speed and acceleration performance similar to a 3.5hp internal combustion outboard, making it ideally suited for a variety of small boats, tenders and as secondary power on sailboats. Available in tiller and remote steer models, it features a quick-connect battery and intuitive controls that make setup and operation a breeze. And with advanced displays and other technologies that monitor your battery level and range, you can explore the water with confidence.
Delivery Contents:
Avator 7.5e Engine
Battery (not included)
Charger (not included)
Avator Advantage
Boost Mode
With Boost Mode, the system automatically doles out up to 20% more torque during hard accelerations, contributing to faster acceleration than similar competitive products.
Sustainability
Avator outboards transform the boating experience by making boating possible with no exhaust fumes and zero direct emissions.
Corrosion Resistance
Every Avator outboard is engineered with Mercury’s proven corrosion-preventive materials and coatings, so you can boat confidently in freshwater or saltwater.
Easy Storage and Transport

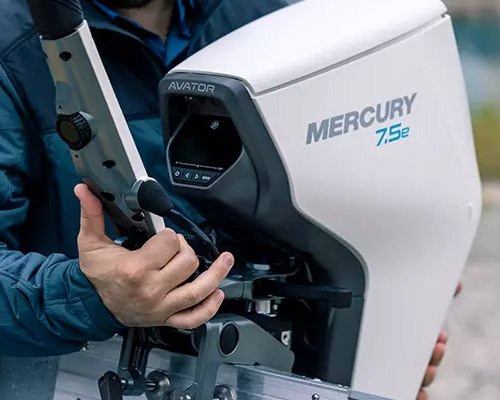

With no fuel and no fumes, an Avator outboard is convenient to store at home or on a larger boat. The quick-connect bracket enhances portability, allowing you to install the tiller model in a snap.

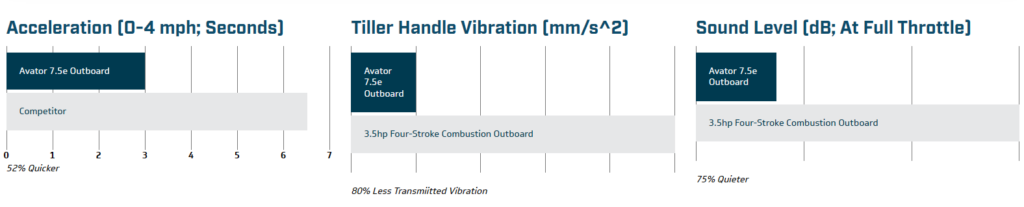

Avator 7.5e Performance Data
Range & Runtime
Based on testing with a 13-foot Veer™ V13 boat (382-pound dry weight), the Avator 7.5e electric outboard can run for 60 minutes or 5 miles at constant full throttle, with one fully charged 1kWh battery, and up to 19 hours or 34 miles at constant 25% throttle. Range and runtime may vary. Environmental conditions, boat type and load can influence performance.
Smooth & Quiet
With its whisper-quiet motor and ultra-smooth performance, a Mercury Avator electric outboard will get you where you’re going without interrupting the conversation. The 7.5e outboard is four times quieter to the operator than a 3.5hp four-stroke outboard at full throttle.
Superior Efficiency
From the transverse flux motor to the lithium-ion battery, we engineered every aspect of the Avator propulsion system to optimize efficiency. The 7.5e outboard has greater system efficiency than similar competitive electric outboards.
Features

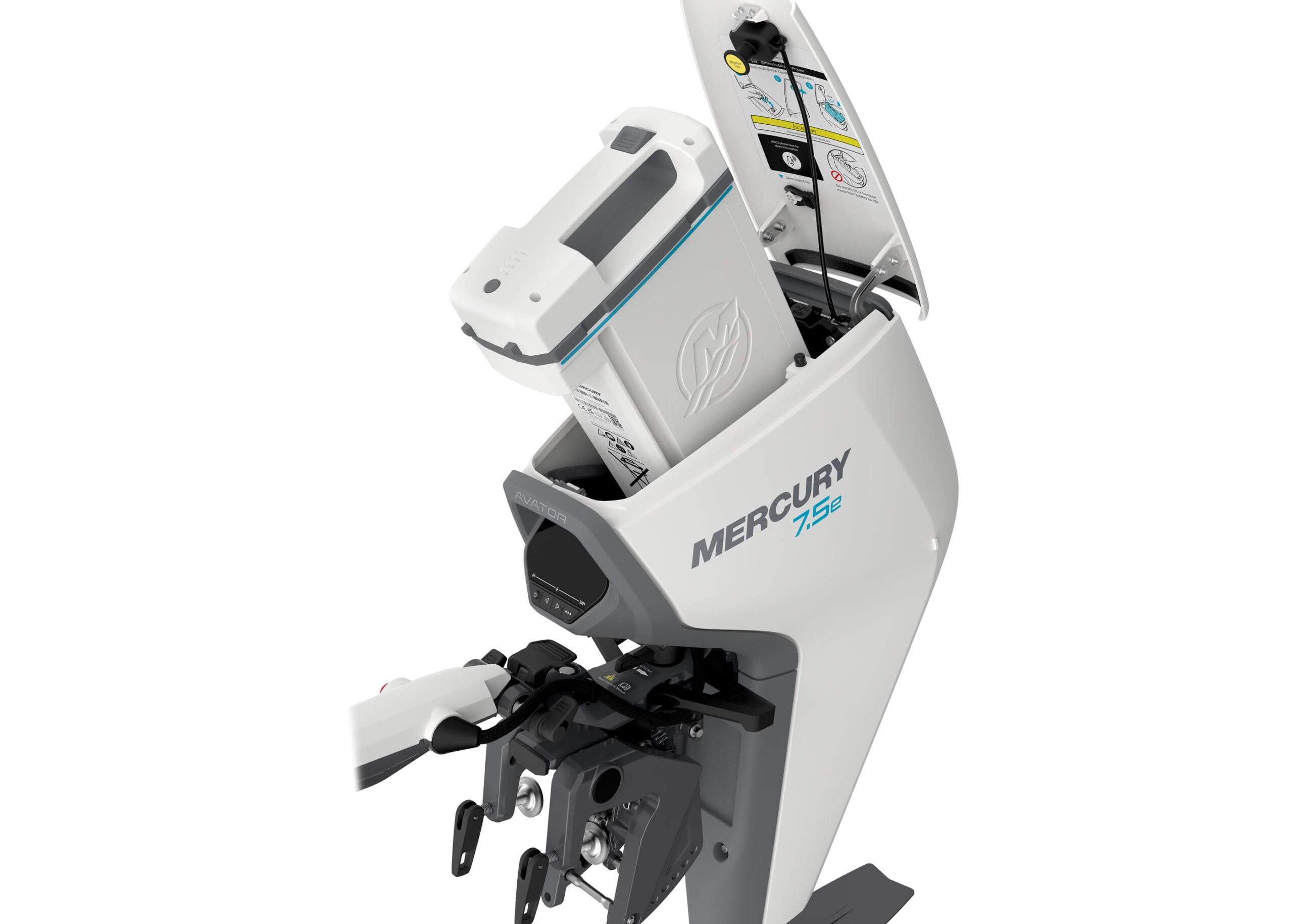

Quick-Connect Battery

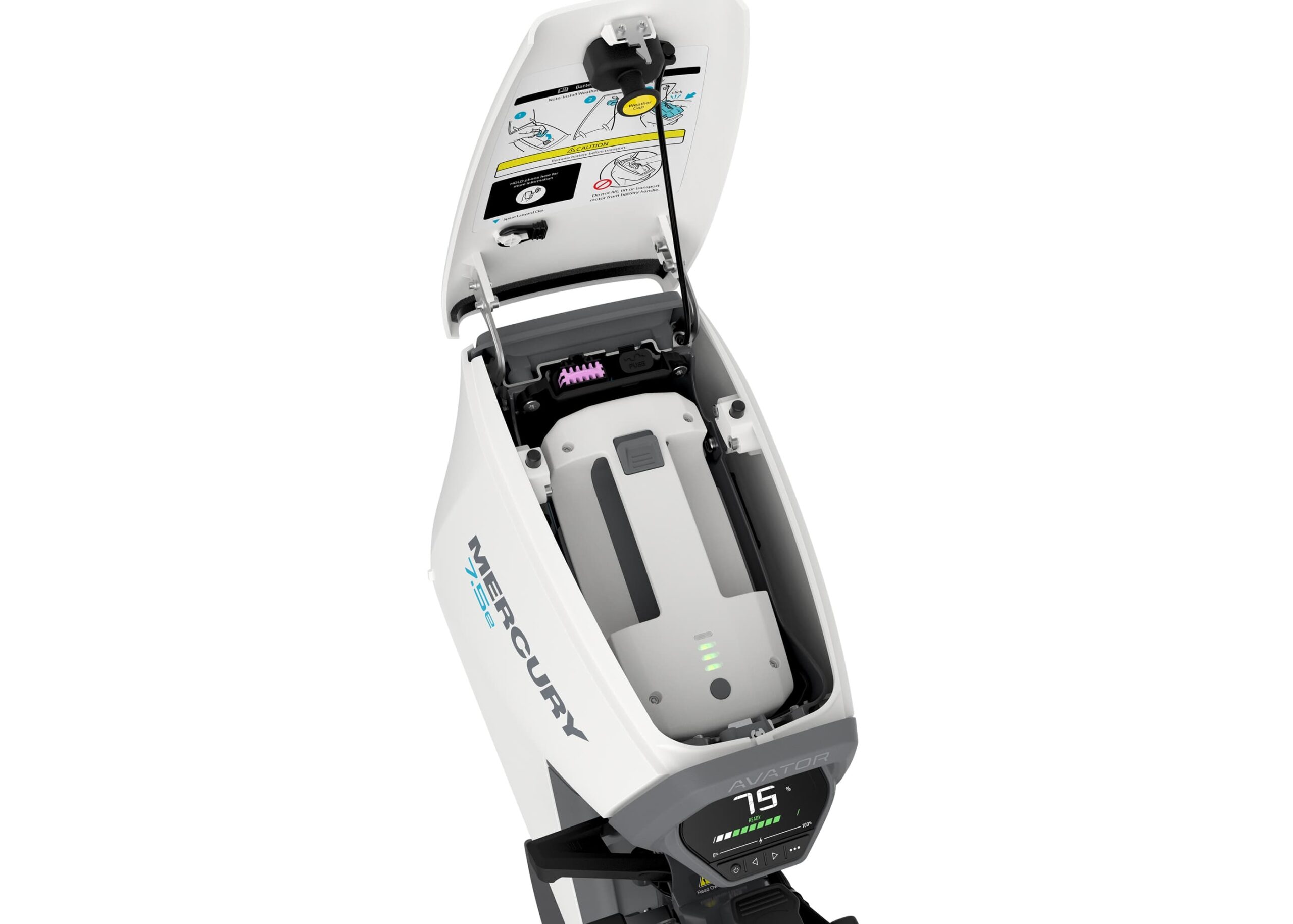

The 1 kWh lithium-ion battery has no cables to connect. It slides into place under the flip-up top cowl, saving you valuable space within the boat. Need to go even farther? No problem. You can bring along an available spare battery that swaps into place in seconds.
Transverse Flux Motor
The industry-first transverse flux motor generates high torque with little effort, for quick acceleration. And with an efficient overall design, you can enjoy full, exciting days on the water.

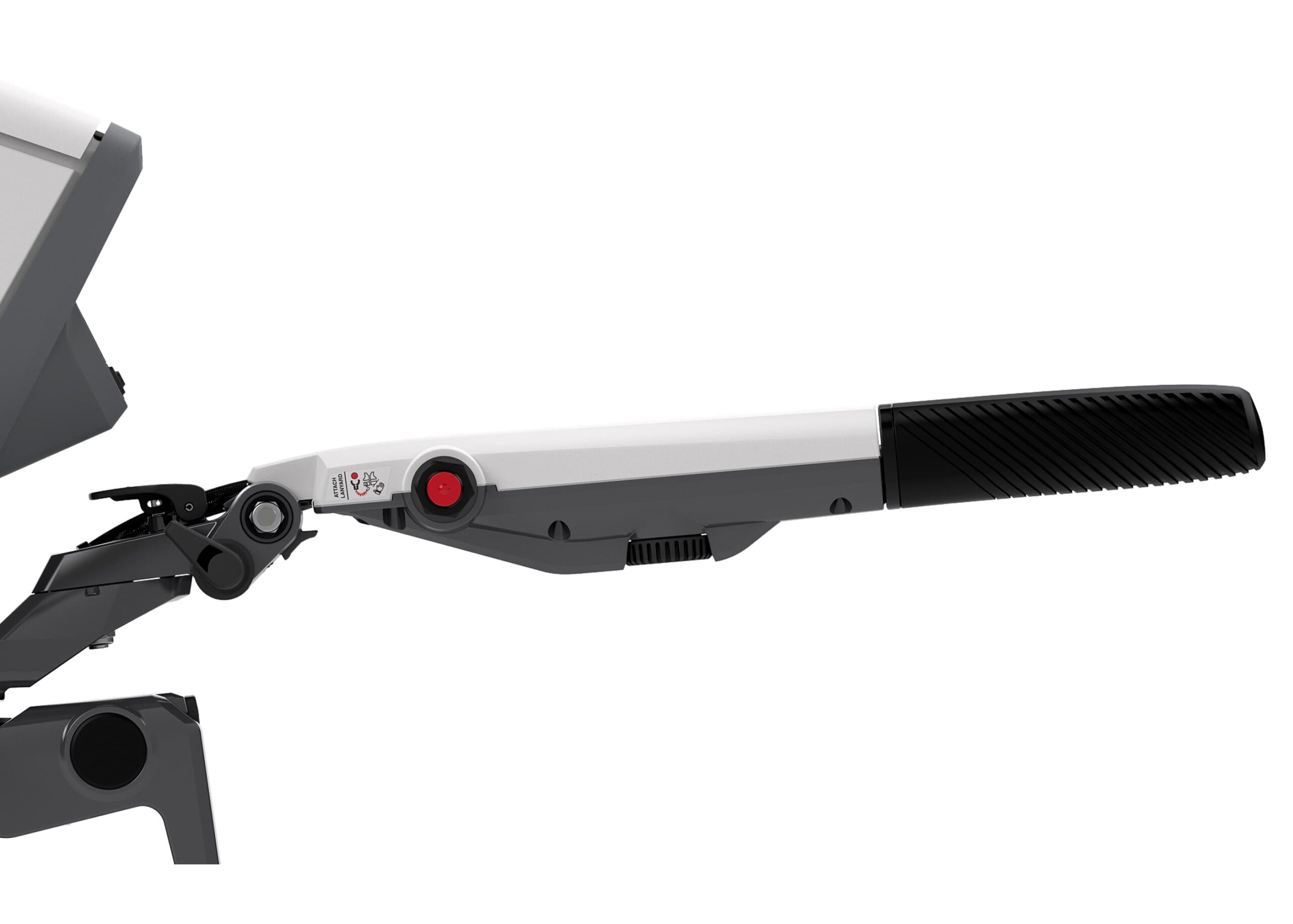

Multi-Purpose Tiller Handle
The Avator tiller was designed to let anyone take the helm with confidence. It adjusts up, down, left or right for comfortable steering from any position or with either hand, and it folds down to become a convenient carrying handle.
High-Efficiency Prop
Available in three pitches, the Avator prop is crafted of a high-strength, impact-resistant composite material. Its three-blade design is optimized for efficiency to help extend battery life.
Digital Controls
For console boats, digital remote controls deliver instant responsiveness, with no hesitation. Controls are available in three styles to fit a range of center- and side-console mounting positions.
Intuitive Digital Controls
The Avator 7.5e electric outboard is available in a tiller configuration or with advanced Digital Power & Shift remote controls for compatibility with a wide range of small vessels.
Integrated Safety Features
• Motor Cutoff Safety Lanyard (all models)
• Key Switch (remote controls only)
• Neutral Lock (remote controls only)

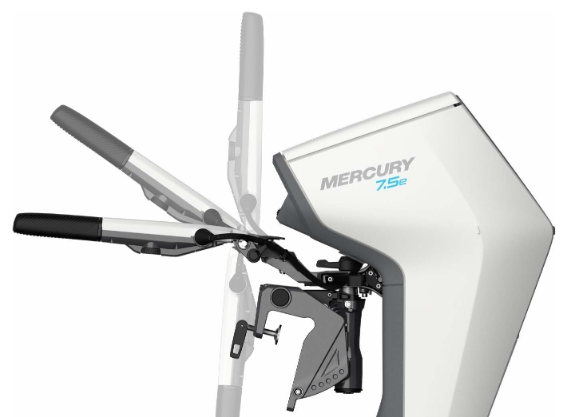

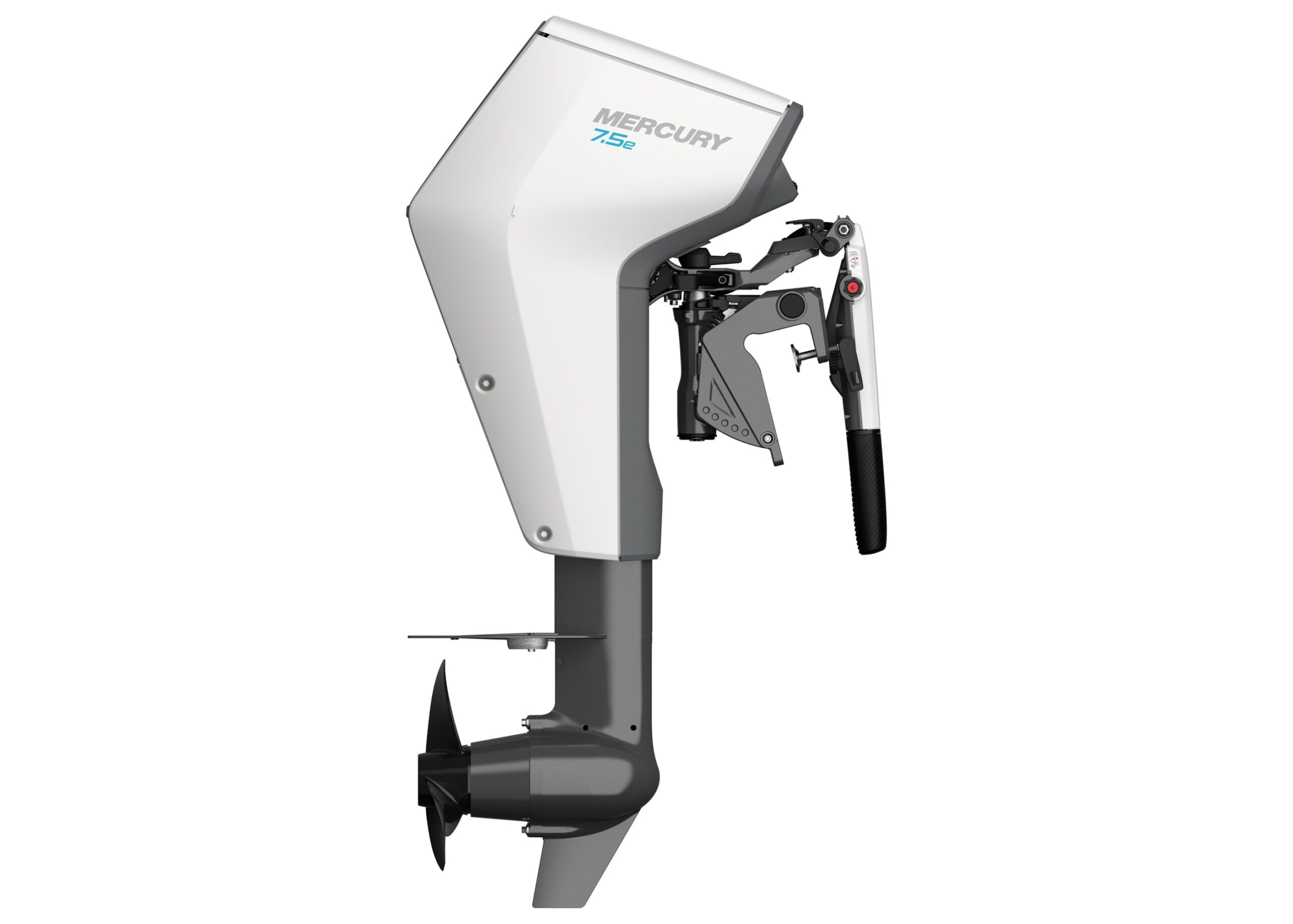

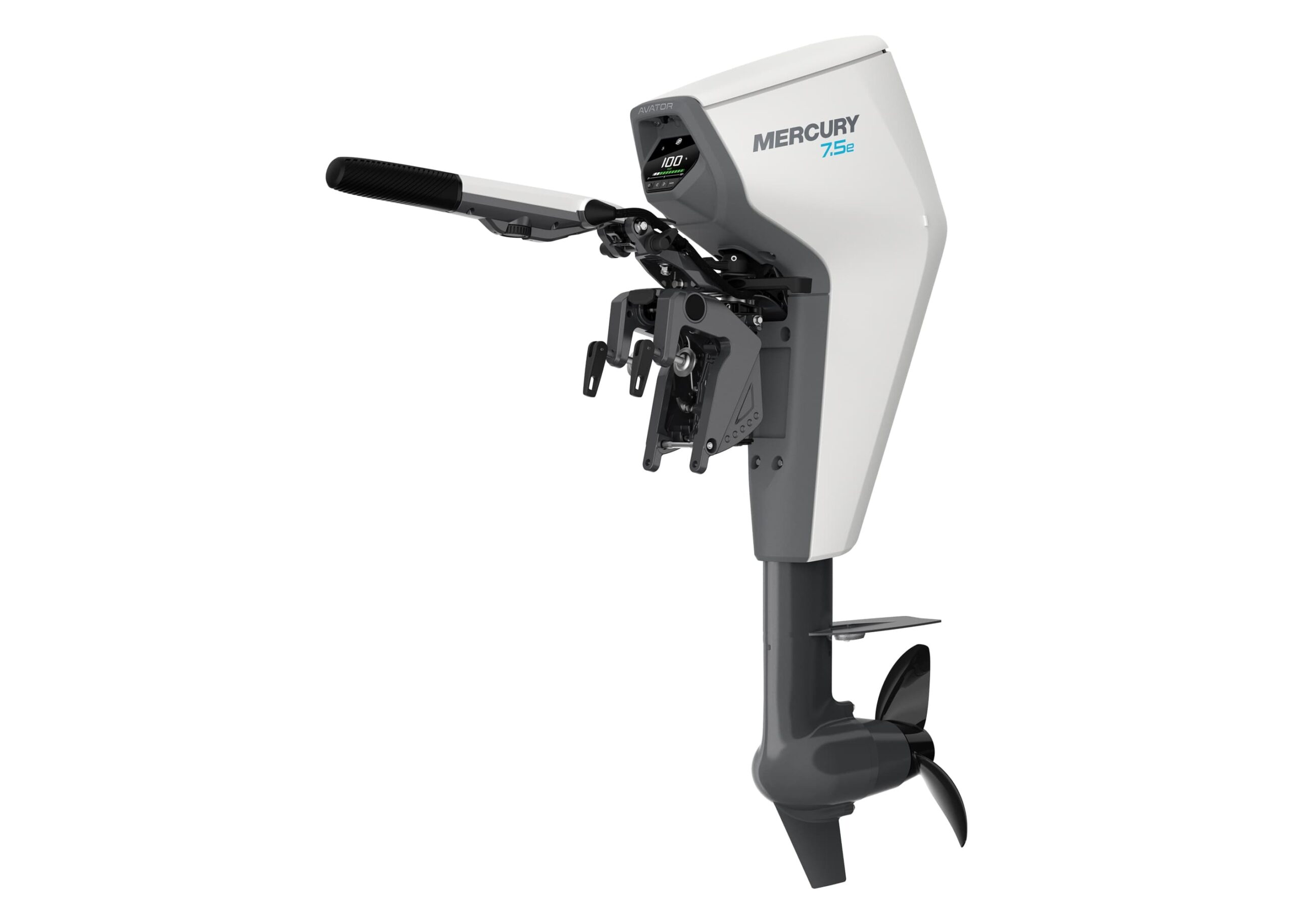

Advanced Tiller
The adjustable, ambidextrous tiller was designed to let anyone take the helm with confidence. It even folds down to become a convenient carrying handle.
• Toolless adjustments for comfortable steering
• Four vertical and three lateral positions
• Reversible “Forward-Reverse” grip
Specifications
Name
Avator 7.5e
Battery
Integrated 1kWh – Li ion NMC
Battery IP Rating
IP67
Battery Type
21166
Battery Weight
17 lbs / 7.7 kgs

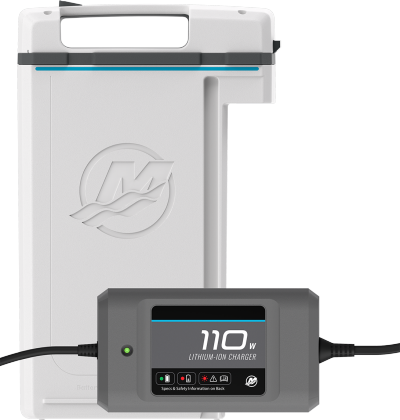

Charger (Standard)
110W
Input Power
890W
Rated Prop Shaft Power
750W
Rated Voltage
48V
Shaft Length
Short Shaft 15″ / 381 mm, Long Shaft 20″ / 508 mm, XL Shaft 25″ / 635 mm
Standard Propeller
7P
Steering
RC / Tiller
Total Weight (Excluding Battery & Transom Bracket)
37 lbs / 16.7kgs
Total Weight Excluding Battery
43 lbs / 19.5 kgs
