Browse the images below to find the area on the outboard engine that you need parts for.
Then click on that image to open it and see the parts list.
Then find the number on the parts list that corresponds to the number of
part that you need on the image and hit it – hey presto its that easy!
Parsun F15A/F20A exploded views and spare parts
Choose where on the outboard engine the part is located

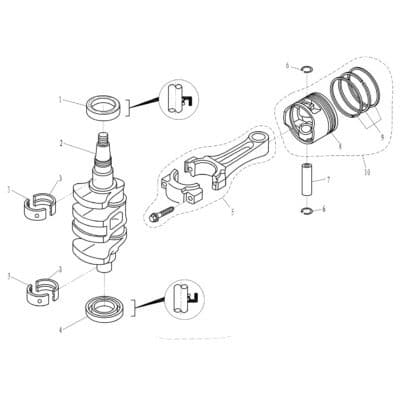

Crankshaft and piston
Parsun F15A/F20A Crankshaft and piston
Many spare parts are compatible with Yamaha.

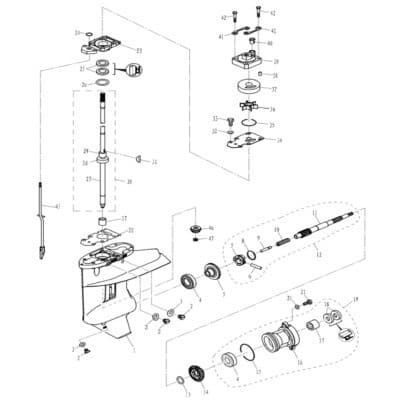

Lower casing and drive 1
Parsun F15A/F20A Lower casing and drive 1
Many spare parts are compatible with Yamaha.

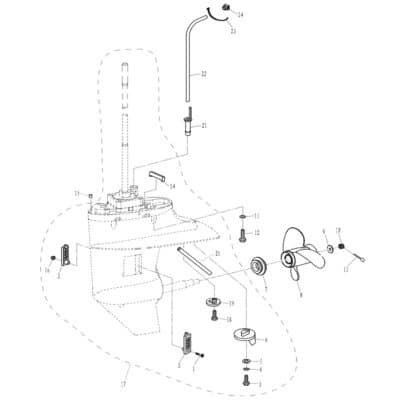

Lower casing and drive 2
Parsun F15A/F20A Lower casing and drive 2
Many spare parts are compatible with Yamaha & Tohatsu.
Parsun F20A EFI outboard alarm description
Alarm condition | Oil pressure lamp |
Flicker frequency |
|
---|---|---|---|
1 | Impulse coil failure | Off | 1 |
2 | Intake pressure sensor failure | Off | 2 |
3 | Voltage below 11V or over 16V | Off | 3 |
4 | Throttle positation sensor failure | Off | 4 |
5 | Cylinder head temperature over 100℃ | Off | 5 |
6 | Intake temperature sensor failure | Off | 6 |
7 | Engine oil pressure | On(Beep on Remote control box) | Off |
8 | Fuel injector 1 failure | Off | 9 |
9 | Fuel injector 2 failure | Off | 10 |
10 | Ignition coil 1 failure | Off | 11 |
11 | Ignition coil 2 failure | Off | 12 |
12 | Fuel pump relay | Off | 13 |
