Hydrodrive MU50TF Inboard Hydraulic system for boats up to 10 m (33ft)

Name: Hydrodrive MU50TF Inboard Hydraulic system for boats up to 10 m (33ft) - Bill Higham Marine £565.00
SKU: MU50TF
Price: 565.00 GBP
Availability: OutOfStock

£565.00

Preorder. This item is very much in demand. Pre-order to get your hands on the very next one available - it’s only £100 deposit to secure your spot!

Add to Wishlist

SKU: MU50TF Category: Hydraulic Steering

Description

Hydrodrive MU50TF Inboard Hydraulic system for boats up to 10 m (33ft)
Auto lubricating IGUBAL® spherical bearing support.

• Hydraulic pump: TL1-16, 16 cc./rev pump., 5 turns

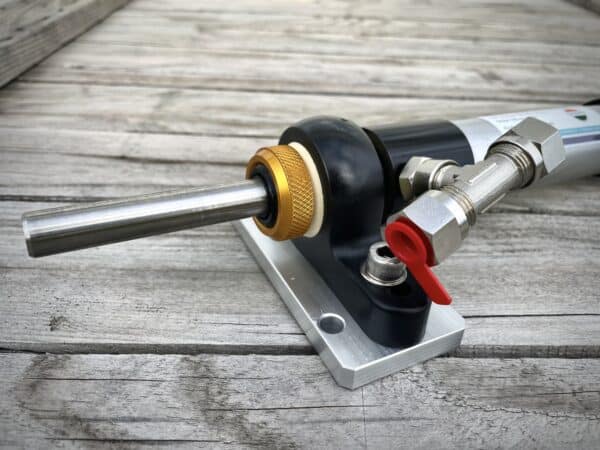

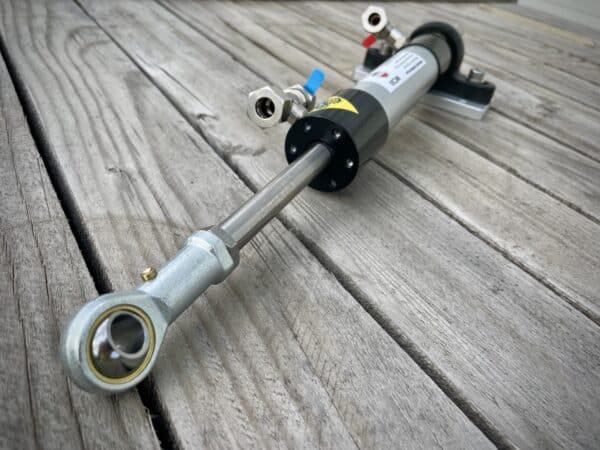

• Hydraulic cylinder: MC 50, 83 cc volume, stroke 150 mm
• 5+5 m (16′) high-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Output force: 387 kgf (853 lbf)
• Torque: 58 kgm (420 lbf-ft)
• Max speed: 35 knots (65 km/h)
