Description

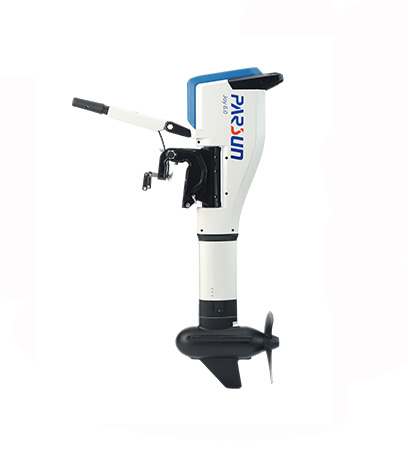

Joy 6.0 is the latest innovative electric outboard motor of Parsun boat motor family, featuring with quiet running, zero emission, maintenance free and easy driving. With 6kW input power, efficient water-cooling system, Joy 6.0 is suitable to inflatable boats, aluminum boats, pontoon boats and other boats under 20 feet.


Water-Cooling System
Efficient water-cooling system ensures stable performance output, whether in sea water or fresh water

PMSM with Direct Drive
Thanks to direct drive technology, Joy 6.0 is powerful, efficient, quite and maintenance free in running.

Easy Driving
Joy 6.0 offers a visual digital touch display panel both for the models with a tiller and the remote-control models.

Speed & Range
|
Power(Watt) |
Speed(mph / kph) |
Running Time (hh:mm) |
Range(mile/km) |
|
1000 |
4.9 / 7.9 |
8:57 |
44.0 / 70.8 |
|
2000 |
5.3 / 8.5 |
4:42 |
24.7 / 39.7 |
|
3000 |
5.5 / 8.8 |
3:17 |
17.7 / 28.5 |
|
4000 |
6.6 / 10.6 |
2:45 |
15.4 / 24.8 |
|
5000 |
7.5 / 12.0 |
2:26 |
15.7 / 25.2 |
|
6000 |
8.0 / 13.0 |
2:14 |
14.7 / 23.7 |
Notice: The performance data is based on a 4.2m inflatbable boat with one person, powered by one Joy 6.0FL with one 175Ah battery in calm river water.
SEPECIFICATIONS
|
Model |
Joy 6.0 |
|
Steering system |
Tiller handle/remote control |
|
Rated power |
6kW |
|
Motor efficiency |
≥80% |
|
Rated rpm |
1550rpm |
|
Drive motor |
PMSM with direct drive |
|
Rated voltage |
48V DC |
|
Battery capacity |
175Ah/80Ah |
|
Water proof |
IP67 |
|
Overall height |
1338mm(L)/1211mm(S) |
|
Shaft length |
570mm(L)/433mm(S) |
|
Size(length*width) |
558x284x1338mm (L) |
|
Propeller |
3 blades, 340*174mm |
|
Trim/tilt angle |
0°、4°、8°、12°/60° |
|
Battery position |
External |
|
GPS |
Yes |
|
Bluetooth APP |
Yes |
|
Weight(L) |
35kg (without battery) |
