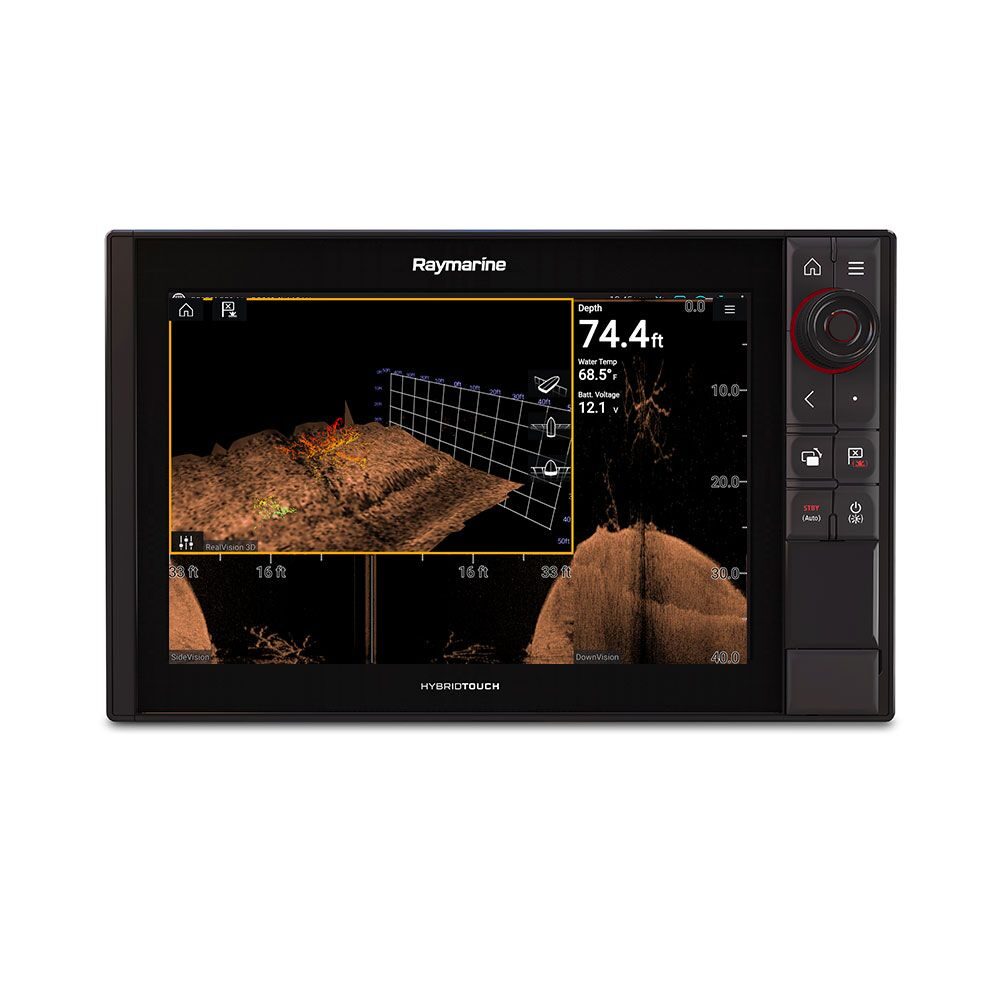

Raymarine AXIOM PRO 12-Pro-RVX Display Only (705-E70372)

£4,245.00

In Stock

Compare
SKU: SMG-705-E70372 Category:

Description

Raymarine AXIOM PRO 12

Axiom Pro is the new standard for œall-in-one  display. Axiom Pro is engineered for captains that want it all. Available with  RealVision 3D,  1kW CHIRP sonar, and Raymarine  HybridTouch  control, And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.



Product Specifications



Display Size: 12.1″ IPS Optically Bonded LCD

Display Resolution: 1280 x 720 WXGA

Display Type: Multitouch

Brightness: 1,200 nits

Viewing Angle: Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Dimensions: 14.1″ x 9.17″ x 2.56″ (358 x 223 x 65 mm)

Weight: 4.5lbs (2.04 kg)

Mounting: Top, Front, Bracket

Waterproof Rating: IPX6 / IPX7

Operating Temp: minus 13deg F to 131deg F (-25deg C to +55deg C)

Storage Temp: Minus 22deg F to 158deg F (-30deg C to +70deg C)

Voltage: 12V and 24V DC (8 V to 32 DC)

Power Consumption (Full brightness): 35W

Social Share

Additional information

Weight2 kg
