Hydrodrive MU50TF-MRA Inboard System kit for boats up to 33 ft.

£590.00

Specification:

  • Output Force: 387 kgf. (853 lbf)
  • Torque: 58 Kgm. (420 lb-ft)
  • Max Speed: 35 kts.
  • Turns: 5

Out of stock

Compare
SKU: MU50TF-MRA Categories: ,

Description

Hydrodrive MU50TF-MRA Inboard System kit Complete kit for boats up to 10 mt. (33 ft.)
New technology of Inboard Hydraulic Steering System, for boats up to 10 mt. (33 ft.)

with Anti-Feedback Valve, Automatic Pilot Connection Port

Specification:

  • Output Force: 387 kgf. (853 lbf)
  • Torque: 58 Kgm. (420 lb-ft)
  • Max Speed: 35 kts.
  • Turns: 5

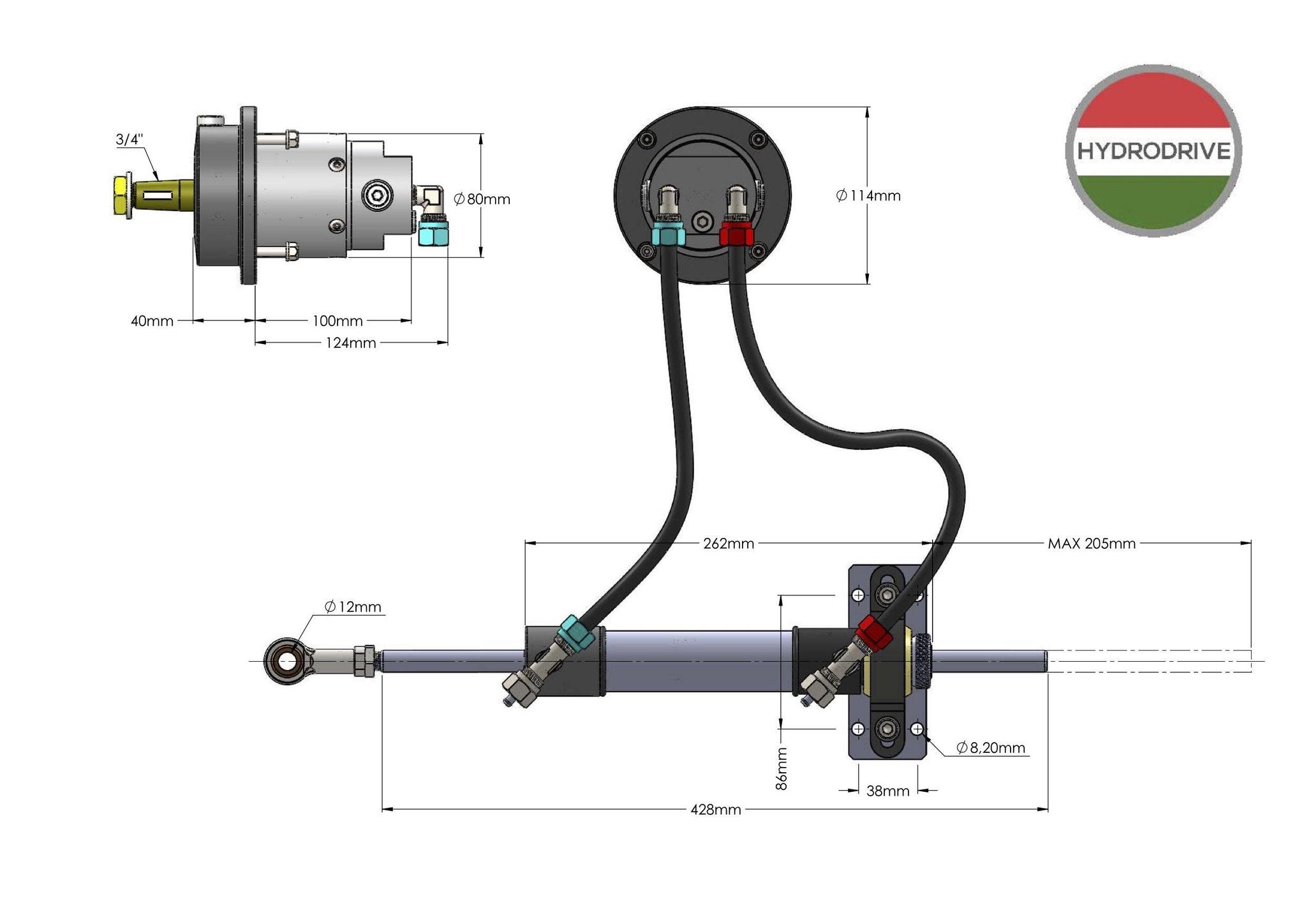

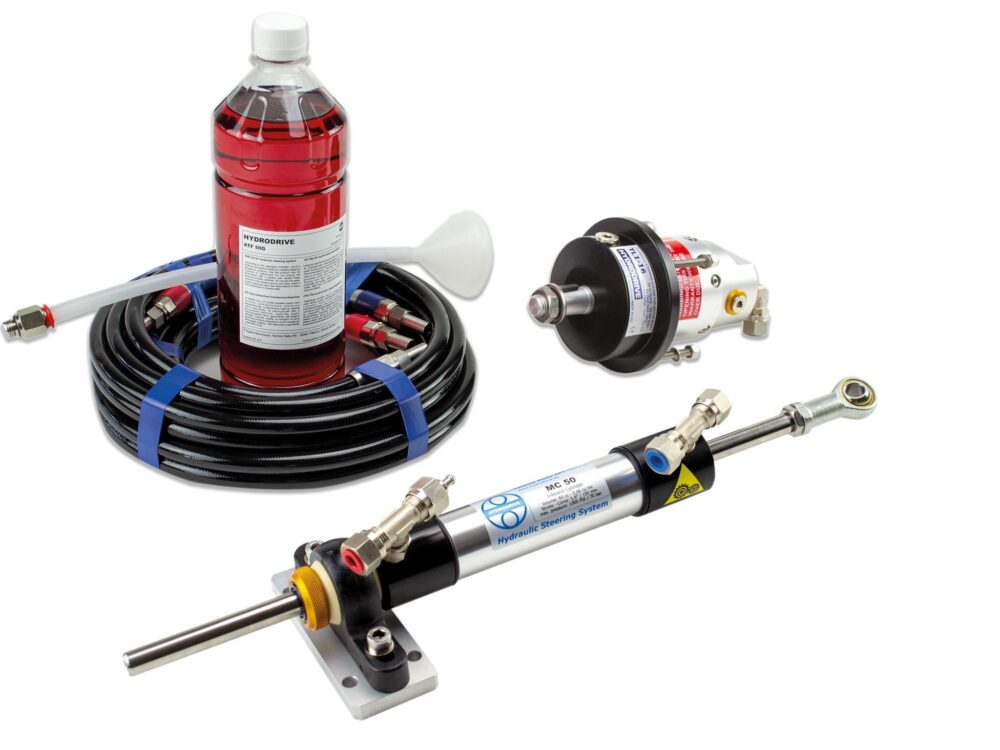

Kit contains:

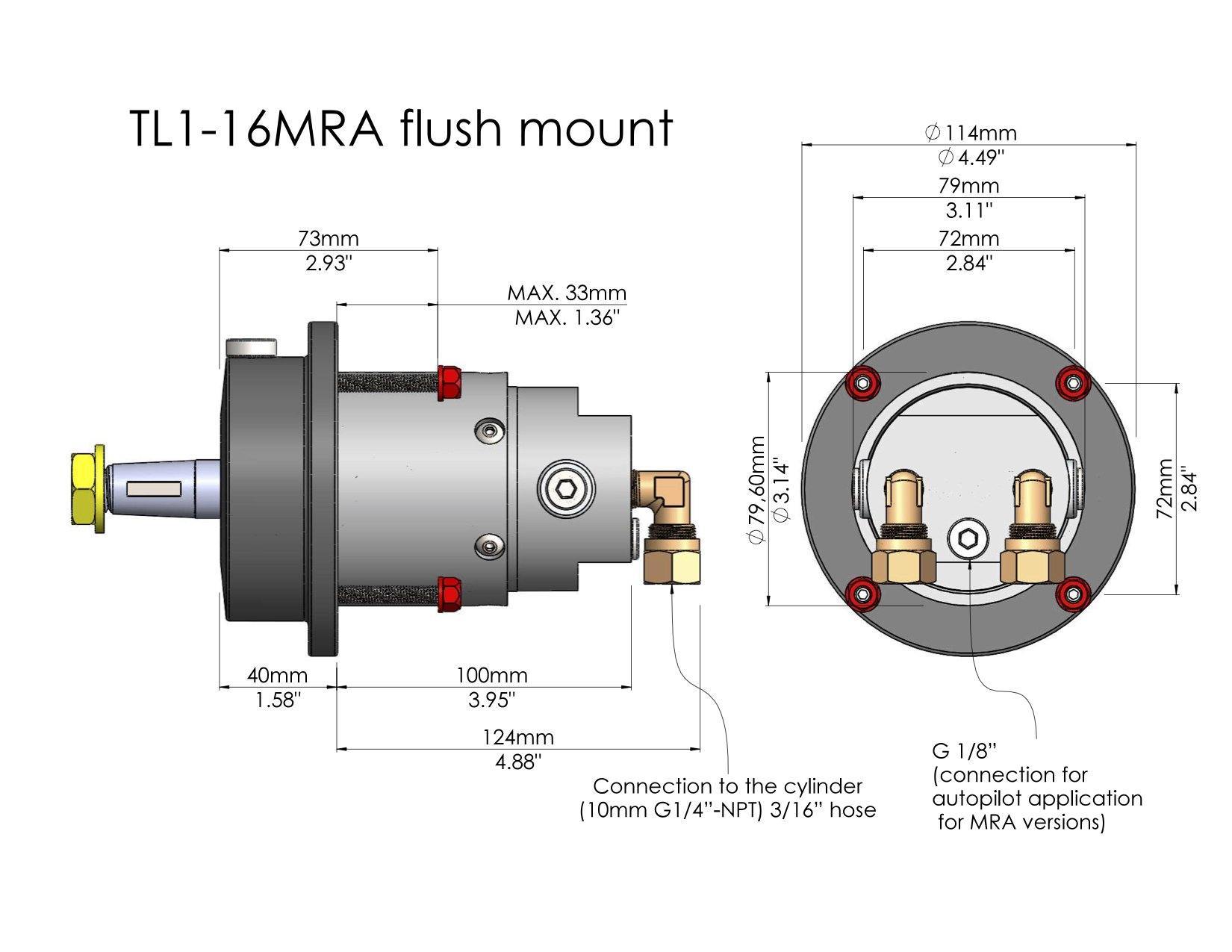

  • TL1-16 MRA Hydraulic Pump, 16 cc./rev, Max 70 bar, with fittings installed, Lock-Valve
  • MC50 Hydraulic Cylinder, 83 cc.vol, Max 70 bar, with fittings installed, Stroke 150 mm
  • High-Pressure hose set 1700 PSI-120 bar, 5/16 twin, B.P max 480 bar, with fittings installed, 5+5 mt (16′)
  • HROL- Hydraulic Oil, 1 lt bottle, ATF III G, Temp: +60/-30
  • Without Lock-Valve
