MF115-MRA Outboard Hydraulic System for engines up to 120 HP

Description

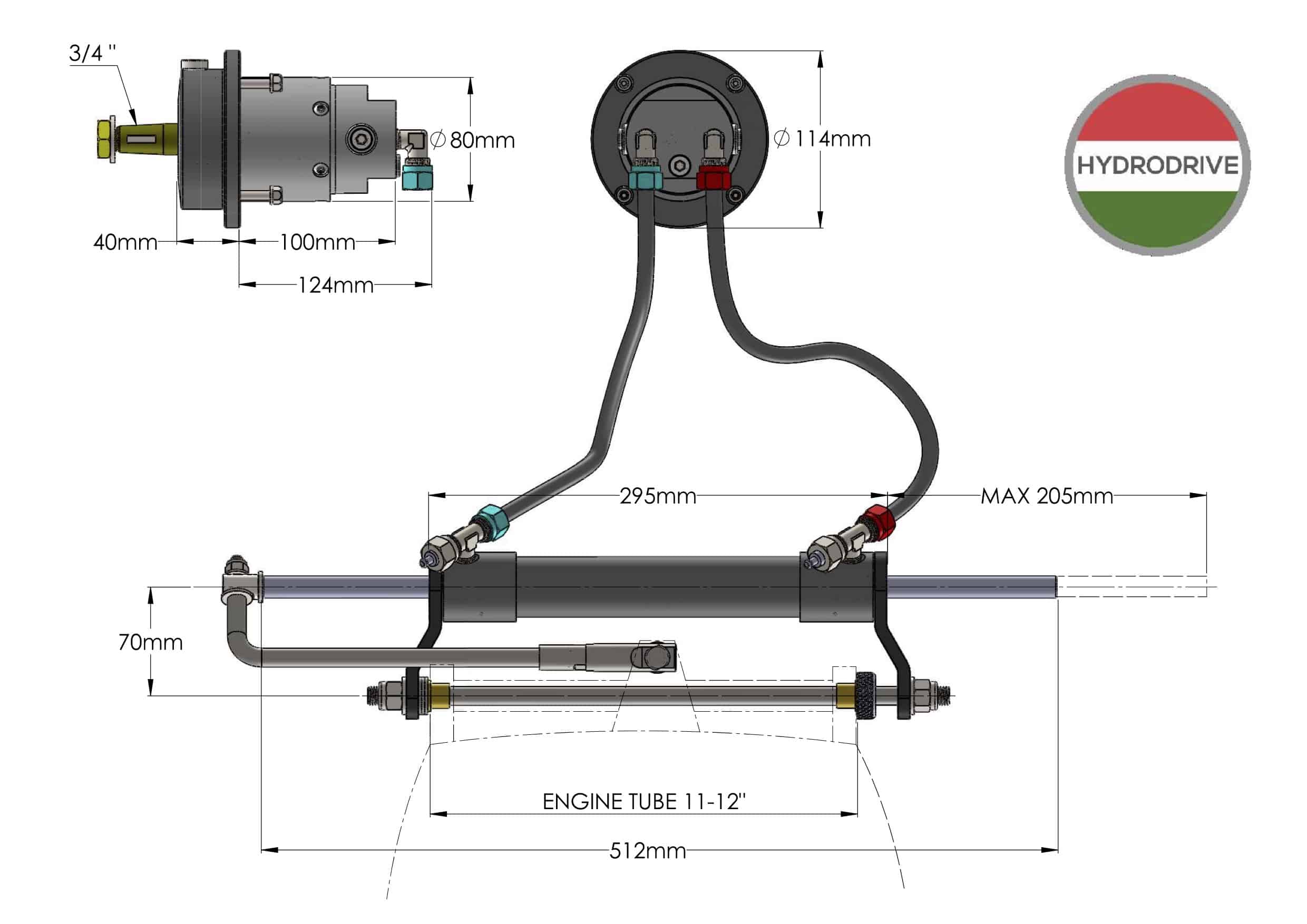

MF115-MRA Outboard Hydraulic System for engines up to 120 HP with fixed cylinder.
The Hydraulic pump comes with an Anti-Feedback valve and an Automatic Pilot Connection port.

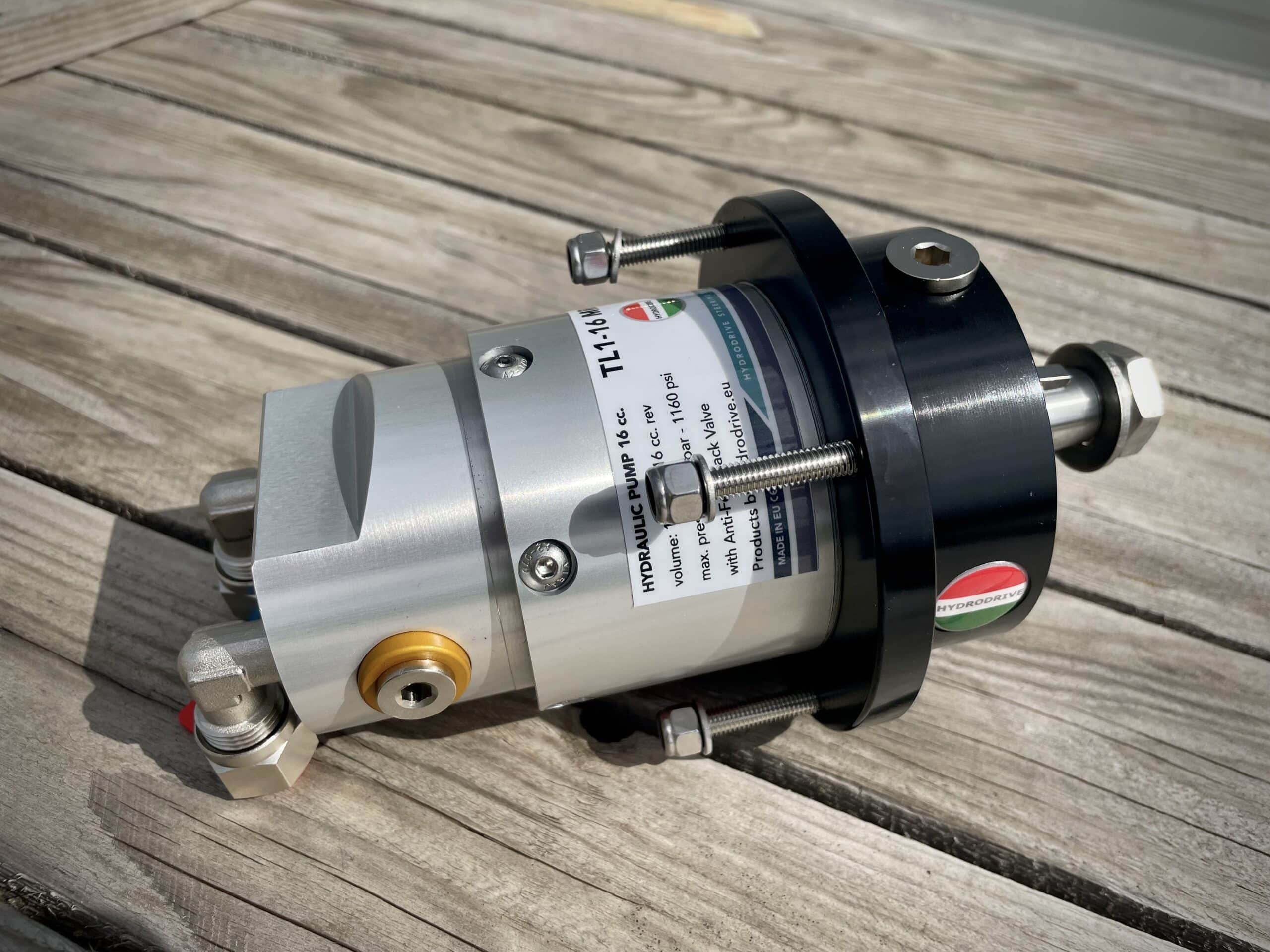

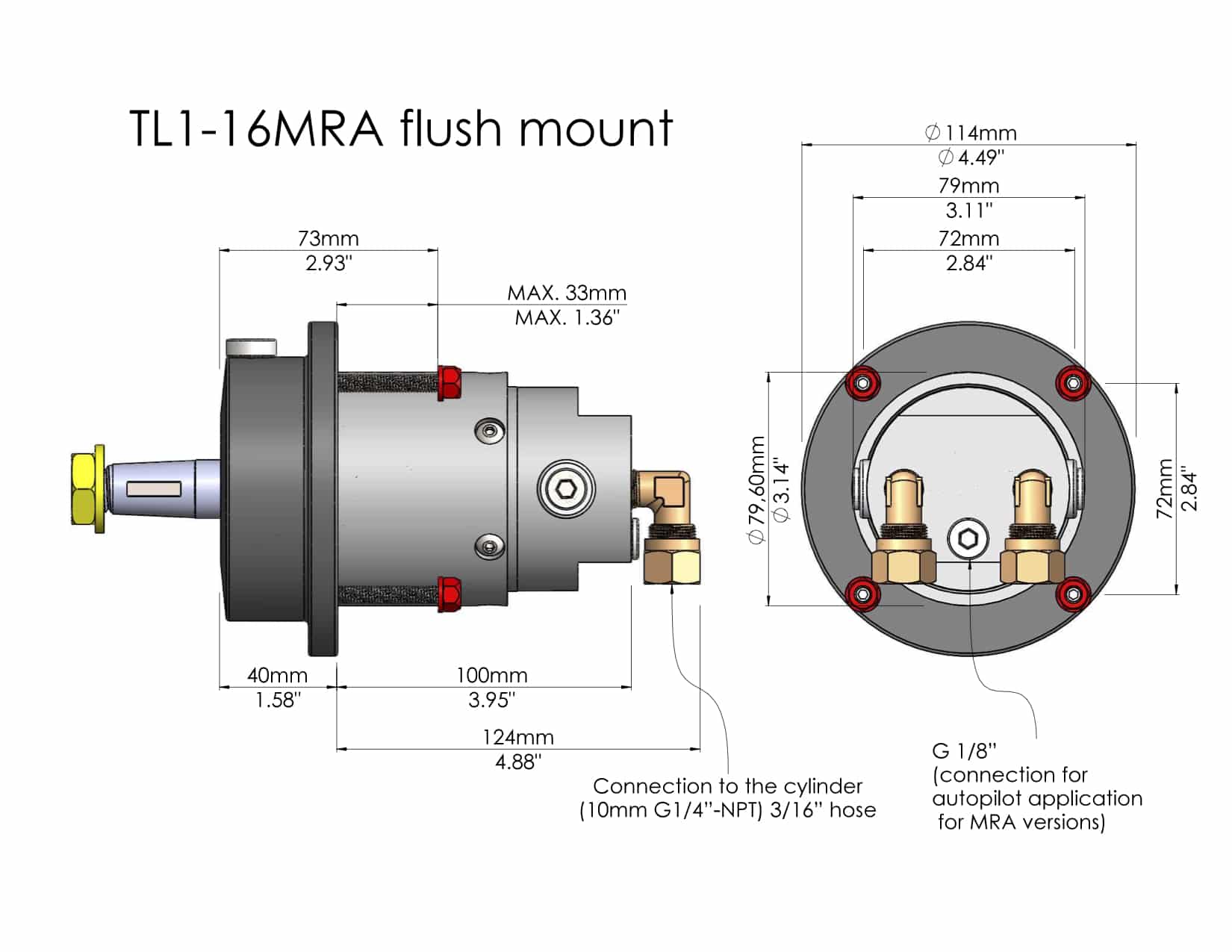

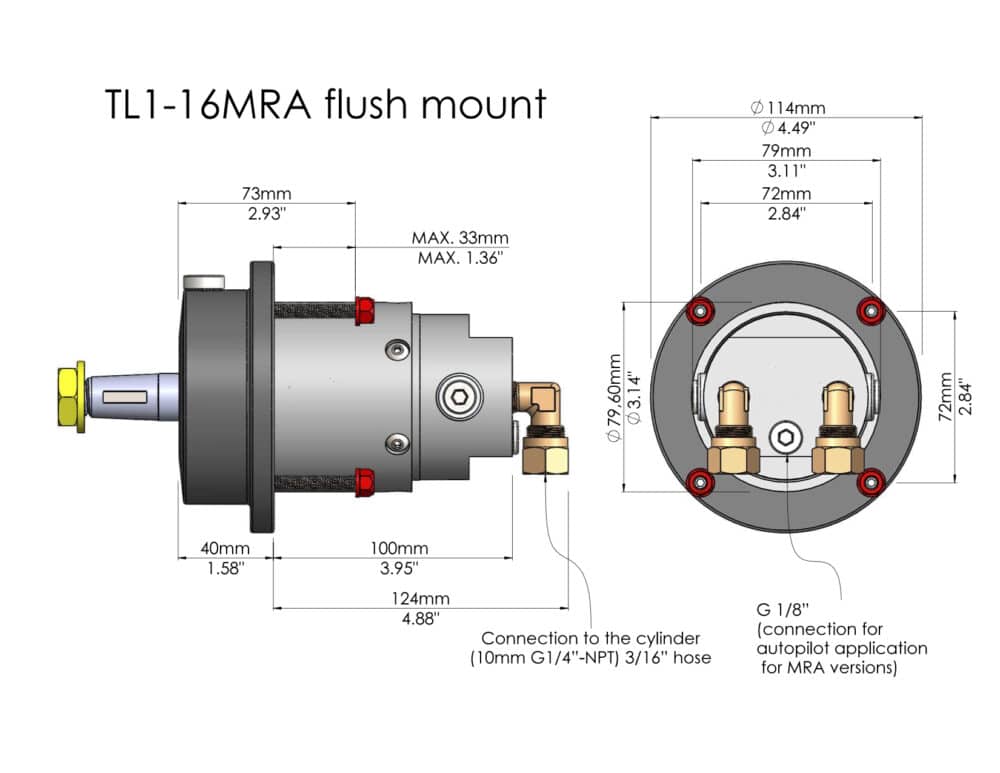

• Hydraulic pump: TL1-16 MRA, 16 cc pump, Max 80 bar, with Lock valve

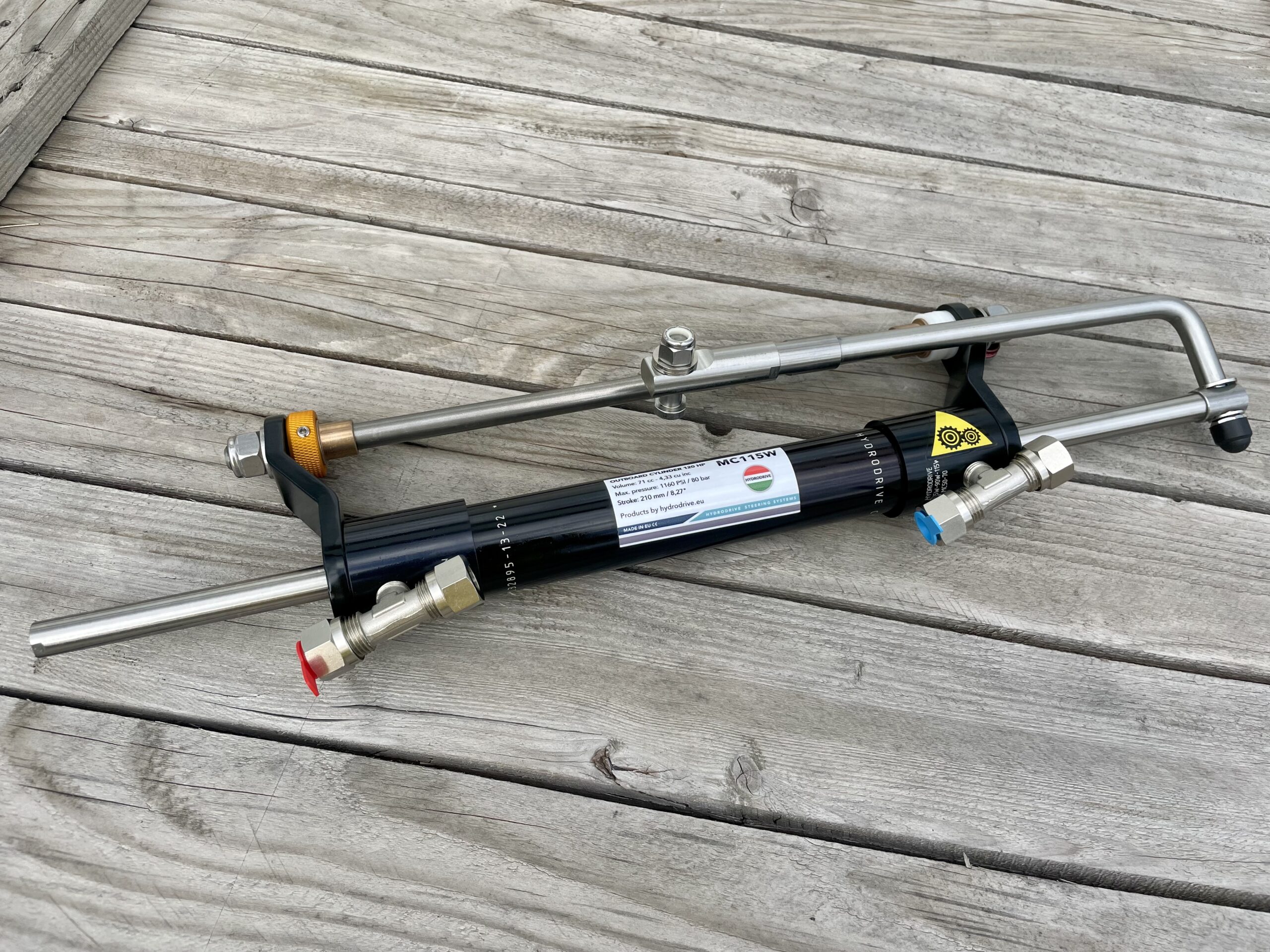

• Hydraulic cylinder: MC115W, 71 cc volume, Max 80 bar, stroke 210 mm
• 5 + 5 m (16′) high-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Turns: 4,5
• Output force: 236 kgf (520 lbf)
• Torque: 50 kgm (362 lbf-ft)
• Max speed: 50 Knots (90 km/h)
Engine Arm (BR72) included.
