Hydrodrive MF90W Outboard Hydraulic system for engines up to 90 HP

Name: Hydrodrive MF90W Outboard Hydraulic system for engines up to 90 HP - Bill Higham Marine £497.64
SKU: MF90W
Price: 497.64 GBP
Availability: OutOfStock

£497.64

Preorder. This item is very much in demand. Pre-order to get your hands on the very next one available - it’s only £100 deposit to secure your spot!

SKU: MF90W Category: Hydraulic Steering

Description

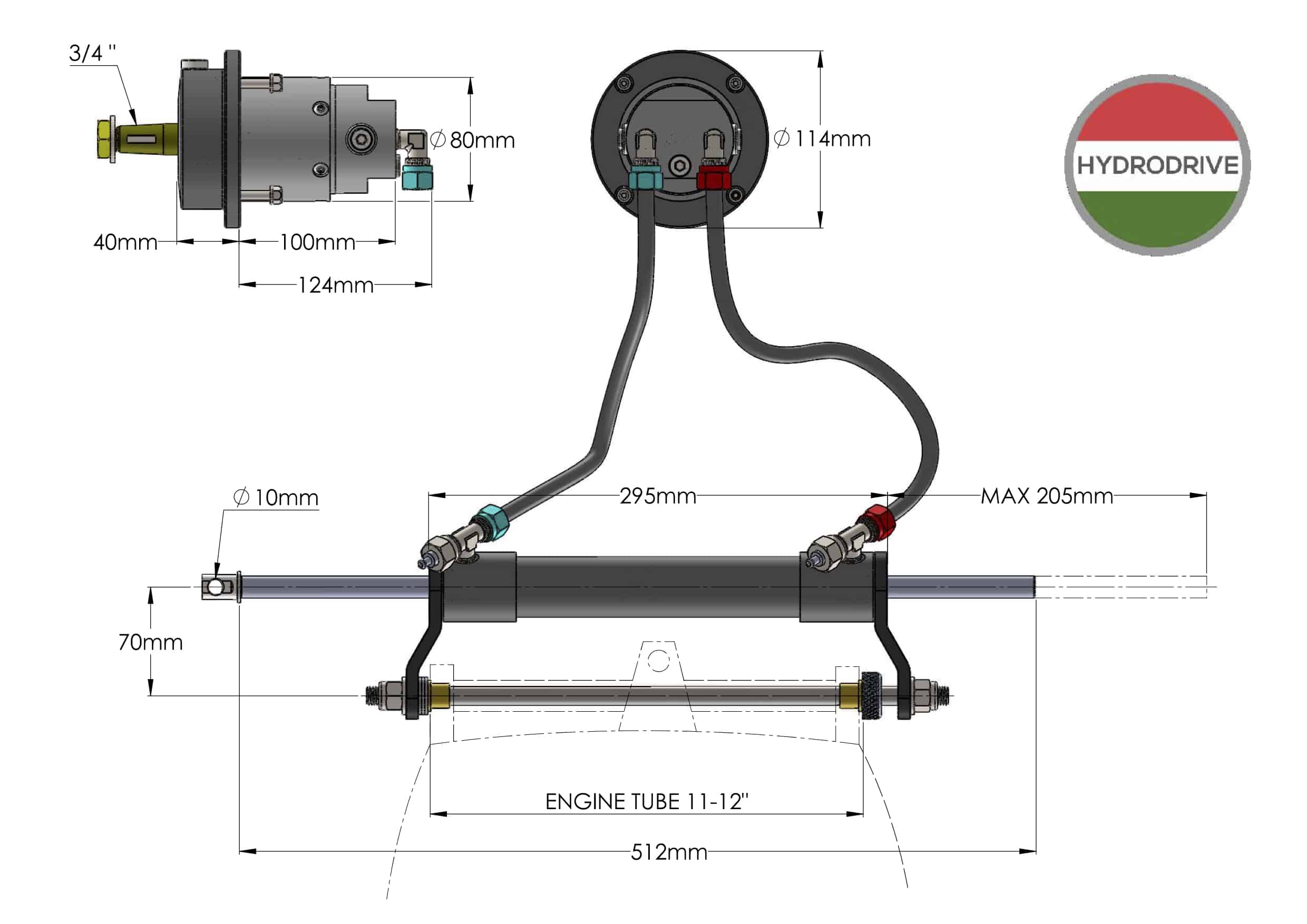

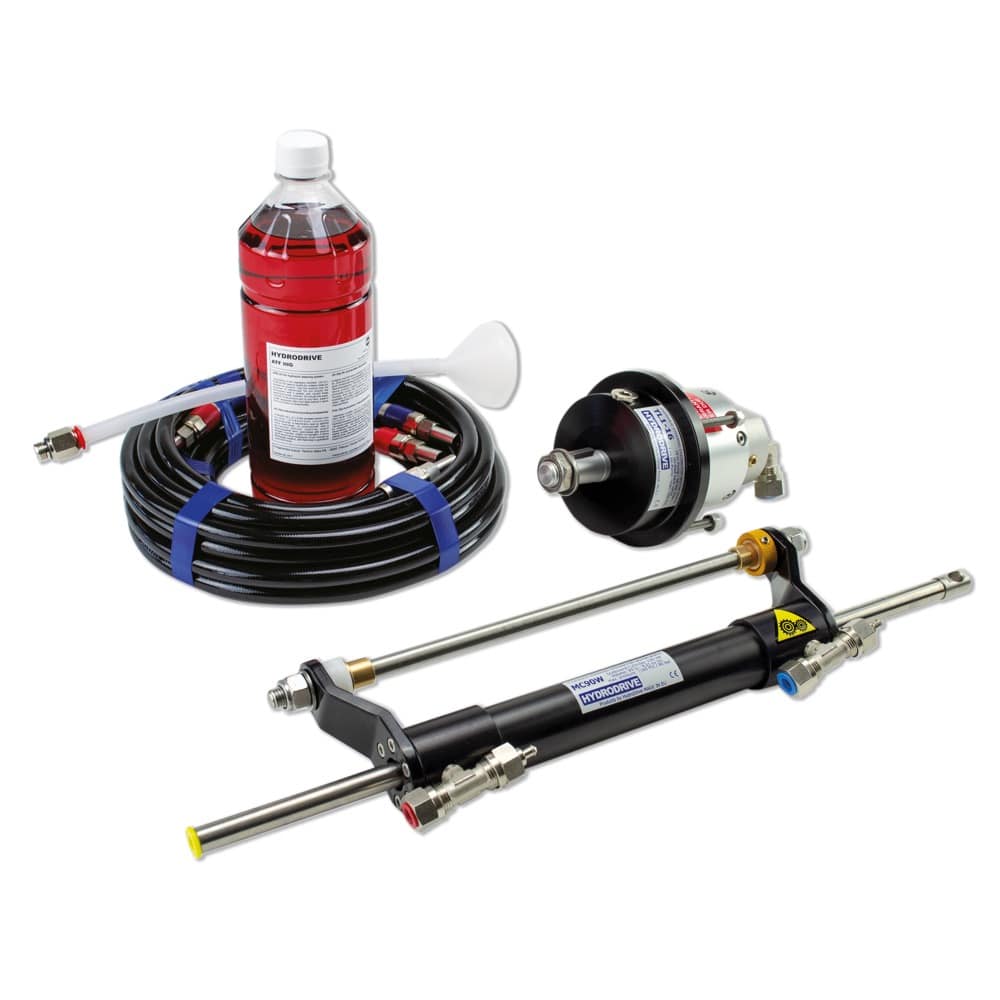

Hydrodrive MF90W Outboard Hydraulic system for engines up to 90 HP with fixed cylinder. Universal application

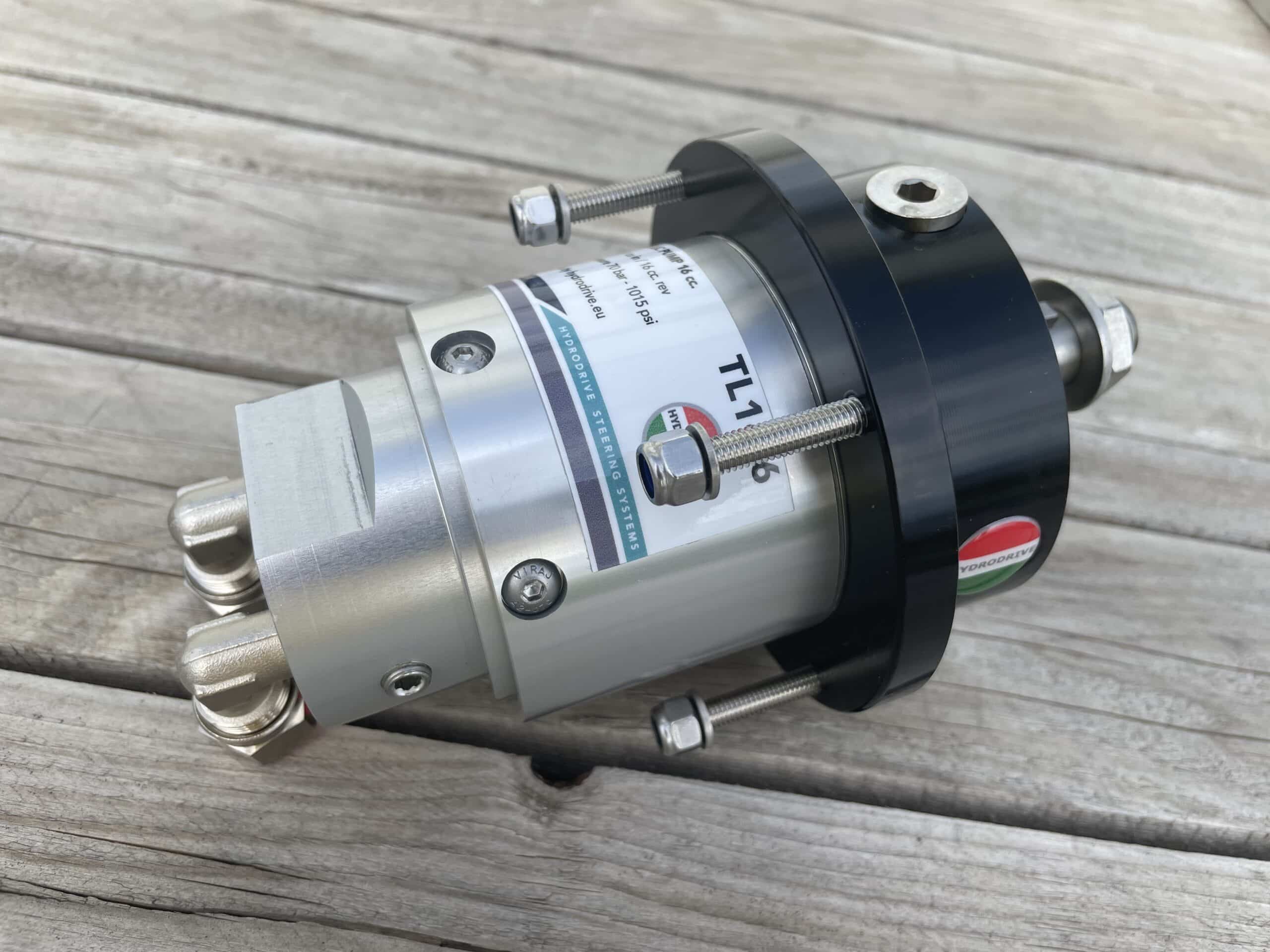

• Hydraulic pump: TL1-16, 16 cc pump., 4,5 turns

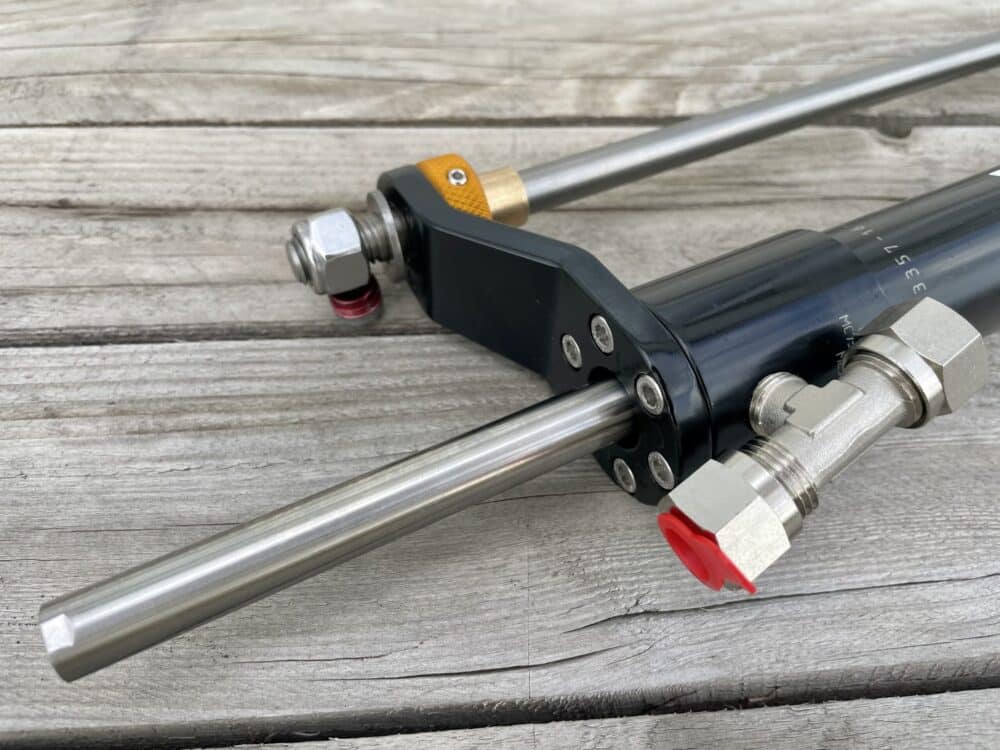

• Hydraulic cylinder: MC90W, 71 cc volume, stroke 210 mm
• 4,5+4,5 m (15′) High-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
• Output force: 236 kgf (520 lbf)
• Torque: 50 kgm (362 lbf-ft)
• Max speed: 35 Knots (65 km/h)
