Description
Complete Inboard System kit for boats up to 12 mt. (40 ft.)
New technology of Inboard Hydraulic Steering System, for boats up to 12 mt. (40 ft.)
With Anti-Feedback Valve
Automatic Pilot Connection Port
Specification:
- Output Force: 354 kgf. (780 lbf)
- Torque: 80 Kgm. (579 lb-ft)
- Max Speed: 45 kts.
- Turns: 4

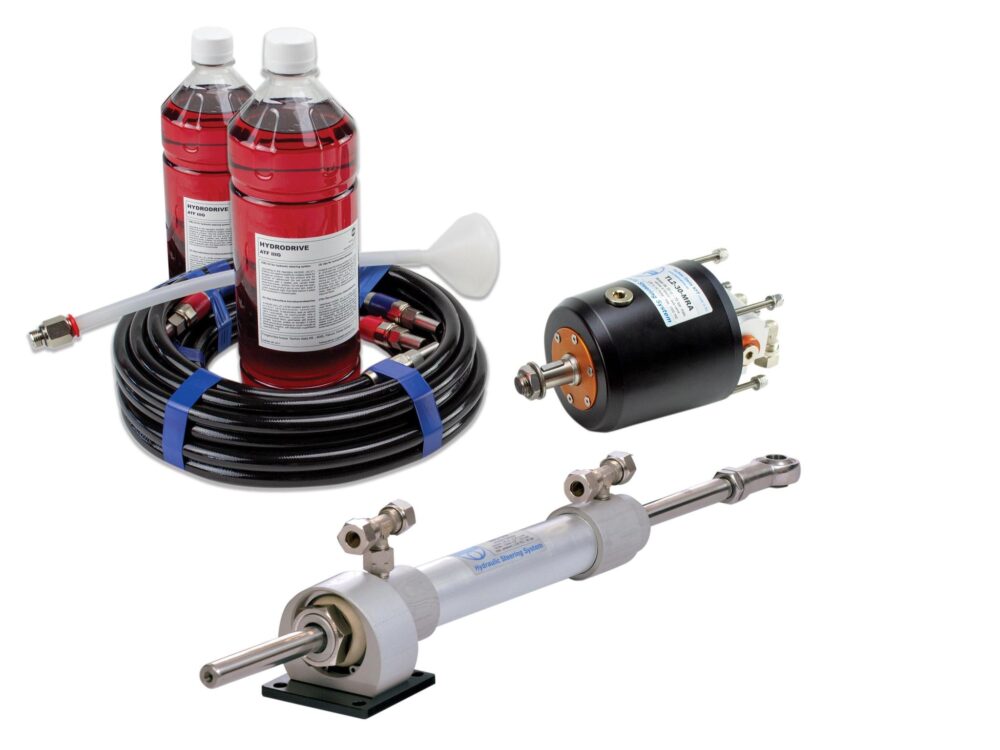

Kit contains:
- TL2-30 MRA Hydraulic Pump, 28 cc./rev, Max 80 bar, with fittings installed, Lock Valve
- MC75 Hydraulic Cylinder, 114 cc.vol, Max 80 bar, with fittings installed, Stroke 225 mm
- High-Pressure hose set 1700 PSI-120 bar, 5/16 twin, B.P max 480 bar, with fittings installed, 7+7 mt (23′)
- HROL- Hydraulic Oil, 2 lt bottle, ATF III G, Temp: +60/-30
- Without Lock-Valve
The pump made from full block hardened aluminium
Cylinder made from cold drawn, hardened aluminium
Auto lubricating IGUBAL® Spherical bearing support
Universal application
Extremely easy to Install
